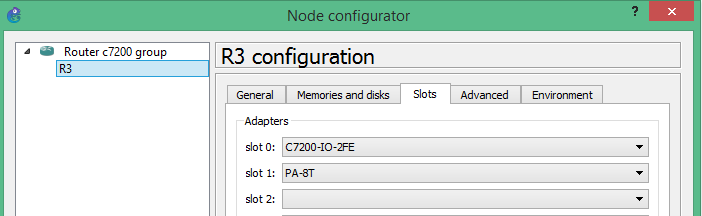

Slots 0, 1, 3 and 5: c7200-I/O-2FE/E, 2PA-FE. Slots 2, 4 and 6: PA-8E, PA-POS-2OC3 PCI bus mb0mb1 (Slots 0, 1, 3 and 5) has a capacity of 600 bandwidth points. Current configuration on bus mb0mb1 has a total of 600 bandwidth points. This configuration is within the PCI bus capacity and is supported. Note: VXR chassis, NPE-400 and C7200-IO-FE are the default in GNS3. STD; VXR; Network Processing Engines (NPEs) NPE-100. NPE-G2 (requires the use of NPE-G2 c7200p IOS images) Input/Output Controllers. Can be inserted into slot 0 only. C7200-IO-FE (1 FastEthernet port).

GNS3 cho phép giả lập các router, cũng như router thật, router ảo cũng cho phép người dùng gắn thêm các module mở rộng, trên đó có các cổng giao tiếp như serial, Fast Ethernet… phục vụ theo nhu cầu của người sử dụng. Các module này có tên gọi và đặc tả kỹ thuật riêng, bài viết này sẽ giúp bạn có thông tin về các module này.

Cisco 1700 Series

1700s have one or more interfaces on the motherboard, 2 subslots for WICs (excepting on 1710s), an no NM slots.

• 1 FastEthernet and 1 Ethernet fixed ports (CISCO1710-MB-1FE-1E).
• WIC slots: 0
• Note that interfaces do not use a slot designation (e.g. “f0”)

1. Even you can run the Cisco XR images with gns3 that work with virtualBox, VMware and with KVM. There are some Cisco 15.x IOS images which are support by gns3 as well. But currently 15.x images are only supported by the Cisco 7200 series in GNS3. List of compatible images from 7200 series is as under: c7200-adventerprisek9-mz.152-4.M7 IOS image.
2. The three images are the standard c7200-boot-mz boot image, the c7200-kboot-mz boot image, and the c7200-mboot-mz image. The c7200-kboot-mz image was released in October, 2000 and is larger than the standard c7200-boot-mz image because it supports newer hardware that is not supported in the c7200-boot-mz image.

1720, 1721 and 1750

• 1 FastEthernet fixed port (C1700-MB-1ETH).
• WIC slots: 2 (maximum of 2 Ethernet ports or 4 serial ports).
• Note that interfaces do not use a slot designation (e.g. “f0”)

1751 and 1760

Gns3 C7200 Slots App

• 1 FastEthernet fixed port (C1700-MB-1ETH).
• WIC slots: 2 (maximum of 2 Ethernet ports or 4 serial ports).

WIC cards

• WIC-1T (1 serial port)
• WIC-2T (2 serial ports)
• WIC-1ENET (1 Ethernet ports)

Cisco 2600 Series

2600s have one or more interfaces on the motherboard, 2 subslots for WICs and 1 Network Module (NM) slot.

2610

• 1 Ethernet fixed port (CISCO2600-MB-1E).
• NM slots: 1 (maximum of 4 Ethernet ports or 16 FastEthernet ports).
• WIC slots: 3 (maximum of 6 serial ports).

2611

• 2 Ethernet fixed ports (CISCO2600-MB-2E).
• NM slots: 1 (maximum of 4 Ethernet ports or 16 FastEthernet ports).
• WIC slots: 3 (maximum of 6 serial ports).

2610XM, 2620, 2620XM and 2650XM

• 1 FastEthernet fixed port (CISCO2600-MB-1FE).
• NM slots: 1 (maximum of 4 Ethernet ports or 16 FastEthernet ports).
• WIC slots: 3 (maximum of 6 serial ports).

2611XM, 2621, 2621XM and 2651XM

• 2 FastEthernet fixed ports (CISCO2600-MB-2FE).
• NM slots: 1 (maximum of 4 Ethernet ports or 16 FastEthernet ports).
• WIC slots: 3 (maximum of 6 serial ports).

Network Modules

• NM-1E (1 Ethernet port)
• NM-4E (4 Ethernet ports)
• NM-1FE-TX (1 FastEthernet port)
• NM-16ESW (switch module: 16 FastEthernet ports)
• NM-NAM (Network Analysis Module, not working).
• NM-IDS (IDS Network Module, not working).

WIC cards

Gns3 C7200 Slots Download

• WIC-1T (1 serial port)
• WIC-2T (2 serial ports)

Cisco 3600 Series

3600s have 2 to 6 Network Module (NM) slots.

• NM slots: 2 (maximum of 8 Ethernet ports, 32 FastEthernet ports or 8 serial ports).

• NM slots: 4 (maximum of 16 Ethernet ports, 32 FastEthernet ports or 16 serial ports).

• 2 FastEthernet fixed ports (Leopard-2FE).
• NM slots: 6 (maximum of 24 Ethernet ports, 32 FastEthernet ports or 24 serial ports).

Network Modules

• NM-1E (1 Ethernet port)
• NM-4E (4 Ethernet ports)
• NM-1FE-TX (1 FastEthernet port)
• NM-16ESW (switch module: 16 FastEthernet ports, maximum of 2 modules per router)
• NM-4T (4 serial ports)

Cisco 3700 Series

3700s have 2 FastEthernet interfaces on the motherboard, 3 subslots for WICs and 1 to 4 Network Module (NM) slots.

2691

• 2 FastEthernet fixed ports (GT96100-FE)
• NM slots: 1 (maximum of 16 FastEthernet ports or 4 serial ports).
• WIC slots: 3 (maximum of 6 serial ports).
• Note: the 2691 is essentially a 3700 with 1 NM slot.

3725

• 2 FastEthernet fixed ports (GT96100-FE)
• NM slots: 2 (maximum of 32 FastEthernet ports or 8 serial ports).
• WIC slots: 3 (maximum of 6 serial ports).

3745

• 2 FastEthernet fixed ports (GT96100-FE)
• NM slots: 4 (maximum of 32 FastEthernet ports or 16 serial ports).
• WIC slots: 3 (maximum of 6 serial ports).

Network Modules

• NM-1FE-TX (1 FastEthernet port)
• NM-16ESW (switch module: 16 FastEthernet ports, maximum of 2 modules per router)
• NM-4T (4 serial ports)
• NM-NAM (Network Analysis Module, not working).
• NM-IDS (IDS Network Module, not working).

WIC cards

• WIC-1T (1 serial port)
• WIC-2T (2 serial ports)

Cisco 7200 Series

7200s have a different architecture. Only the 7206 is supported, it has 6 Port Adapters (PA) slots.

7206

• PA slots: 6
• Note: VXR chassis, NPE-400 and C7200-IO-FE are the default in GNS3.

Chassis types

• STD
• VXR

Network Processing Engines (NPEs)

• NPE-100
• NPE-150
• NPE-175
• NPE-200
• NPE-300

Can be inserted into slot 0 only.

• C7200-IO-FE (1 FastEthernet port)
• C7200-IO-2FE (2 FastEthernet ports)
• C7200-IO-GE-E (1 GigabitEthernet port, Ethernet port is not functional)

Port Adapters

Online Insertion and Removal (OIR) is supported, allowing you to replace PAs while the router is running.

• PA-FE-TX (1 FastEthernet port)
• PA-2FE-TX (2 FastEthernet ports)
• PA-4E (4 Ethernet ports)
• PA-8E (8 Ethernet ports)
• PA-4T+ (4 serial ports)
• PA-8T (8 serial ports)
• PA-A1 (1 ATM port)
• PA-POS-OC3 (1 Packet-Over-SONET port)
• PA-GE (1 GigabitEthernet port)

Các bạn có thể theo link của thiết bị để biết thêm thông tin từ nhà sản xuất Cisco.
